The MC-12 HD is the industry standard for multi-channel processors for film and music reproduction. The culmination of years of research and design, it combines the best elements of performance, flexibility, and elegance. Sophisticated and powerful, it is exceptionally well equipped to control the most elaborate home theaters. Three zones, twelve configurable inputs, HDMI switching, and automatic room calibration enable the MC-12 HD to easily meet the demands of discerning audio and video enthusiasts.

With the myriad features available in the MC-12 HD, the intuitive user interface provides complete adjustability without being confusing. Access to the listening modes, input & output settings, and speaker adjustments is only a few button pushes away.

The MC-12 HD provides seamless control of multi-room systems via its three completely separate zones. Because each zone is independent, it is possible to watch a DVD in the home theater while listening to a CD in the kitchen and recording a program from a satellite receiver to a digital video recorder.

A glance at the MC-12 HD rear panel reveals an impressive array of inputs and outputs. There are multiple analog inputs, including a 5.1-channel connector for DVD-A or SACD sources such as the RT-20 Disc Player. High resolution 24-bit/96kHz analog-to-digital converters can be used to bring these signals into the digital domain for processing or, for audio purists, a true analog bypass can be engaged which keeps the signals in the analog domain from input to output.

Digital audio input is available on one AES/EBU, six S/PDIF coaxial, and six S/PDIF optical connectors. In addition, there are six HDMI input connectors, which are also capable of accepting 5.1-channel, 24-bit/96kHz signals on a single connection. These signals are processed at their native sampling rates through a two-stage phase lock loop, achieving remarkably low intrinsic jitter and high jitter rejection. Lexicon?s proprietary Auto Azimuth processing corrects timing and level imbalances in stereo signals, resulting in exceptional channel separation in matrix-encoded sources.

The MC-12 HD has an extensive array of audio outputs, including 7 main channels, stereo subwoofers, and a dedicated LFE channel. The MC-12 HD Balanced adds XLR connectors for the Main and Zone 2 audio outputs ? useful for installations where long cable runs are required or where there is a high risk of interference.

Each output uses two 24-bit/192kHz digital-to-analog converters operating in dual-mono mode. This design provides an improved signal-to-noise ratio and extended dynamic range, resulting in superior sound quality. High precision digital crossovers and tone controls avoid the signal distortion their analog counterparts often introduce.

For maximum flexibility, each of the main audio outputs has independent crossover, speaker distance, and output level controls. The crossovers can be adjusted in 10 Hz increments from 30 to 120 Hz. The MC-12 HD is also THX Ultra2-certified and integrates the processing and enhancements of the THX Ultra2 standard.

Automatic calibration of speaker distances and output levels is available using the rear panel microphone inputs and the optional Lexicon microphone kit. The accurate adjustment of these settings ensures that signal arrival times and levels are optimal at the listening position.

An optional automatic digital room EQ system provides the ability to smooth low-frequency response and remove acoustic resonances that interfere with not only bass information, but affect frequency response across the entire audible spectrum.

To handle the increasing number of video sources that output high-definition video using HDMI connectors, the MC-12 HD features six HDMI inputs and one output. Complementing its HDMI switcher, the MC-12 HD includes a broadcast-quality analog video switcher with up-conversion to component video. The ultra-wide bandwidth component video switcher accepts analog component video signals, including all HDTV signals, while a composite and S-video switcher accepts high-quality NTSC, PAL, and SECAM video signals. The MC-12 HD has two composite video inputs, three S-video inputs, and four component video inputs.

Enhanced versions of Lexicon's popular Nightclub, Concert Hall, Church, Cathedral, and Panorama listening modes are available, along with an impressive collection of advanced decoders, including Dolby Digital EX, Dolby Pro Logic IIx, DTS 96/24, DTS Neo:6, DTS-ES (discrete and matrix), THX Ultra2, THX Surround EX, and the latest version of Lexicon?s own critically acclaimed Logic 7.

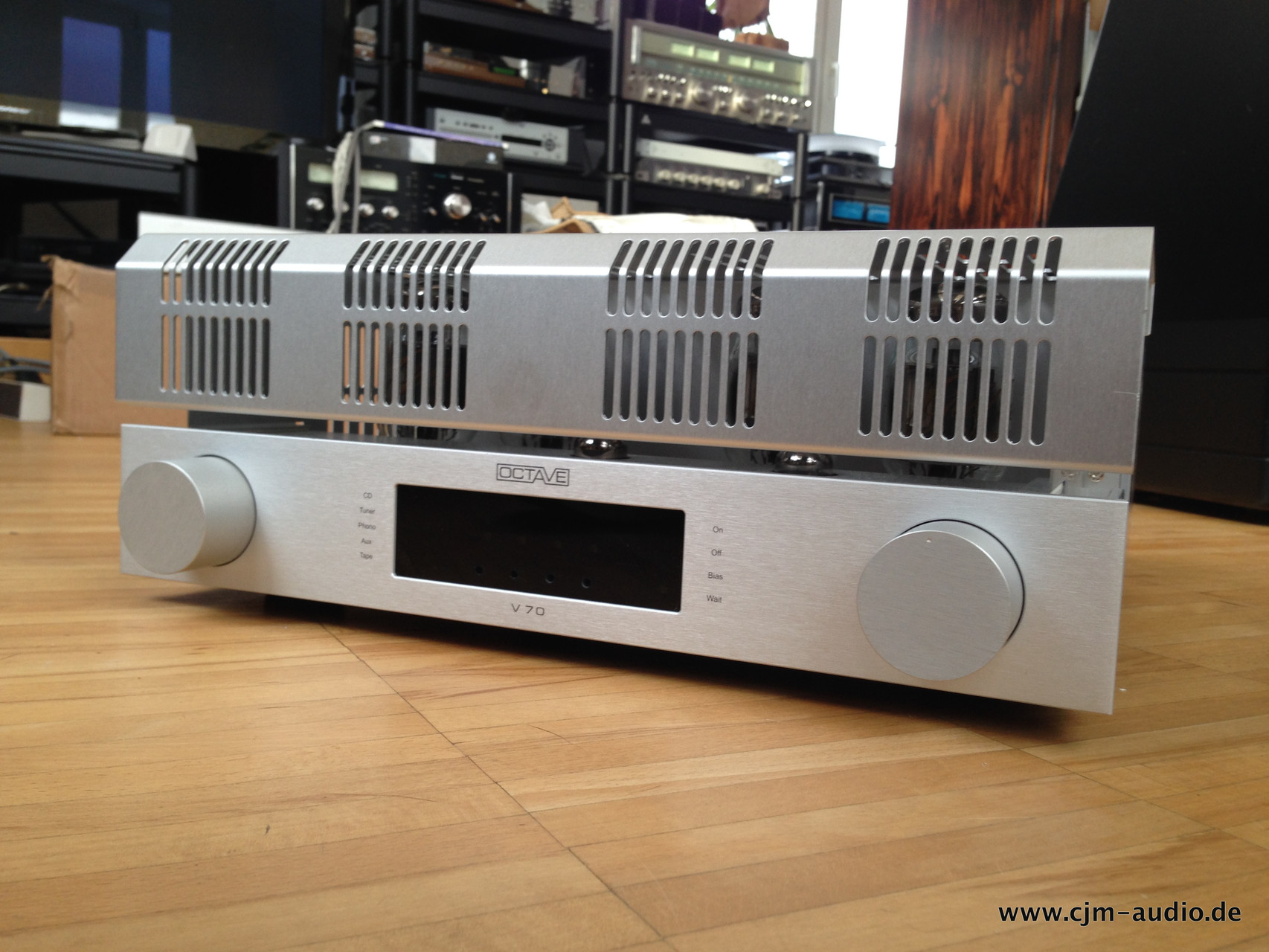

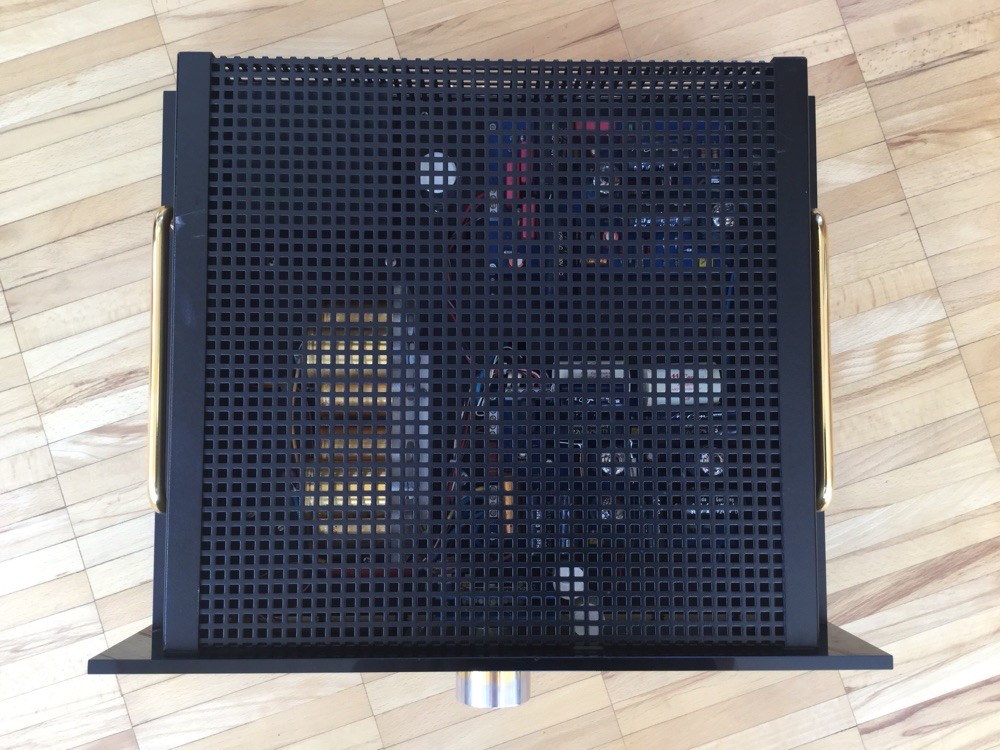

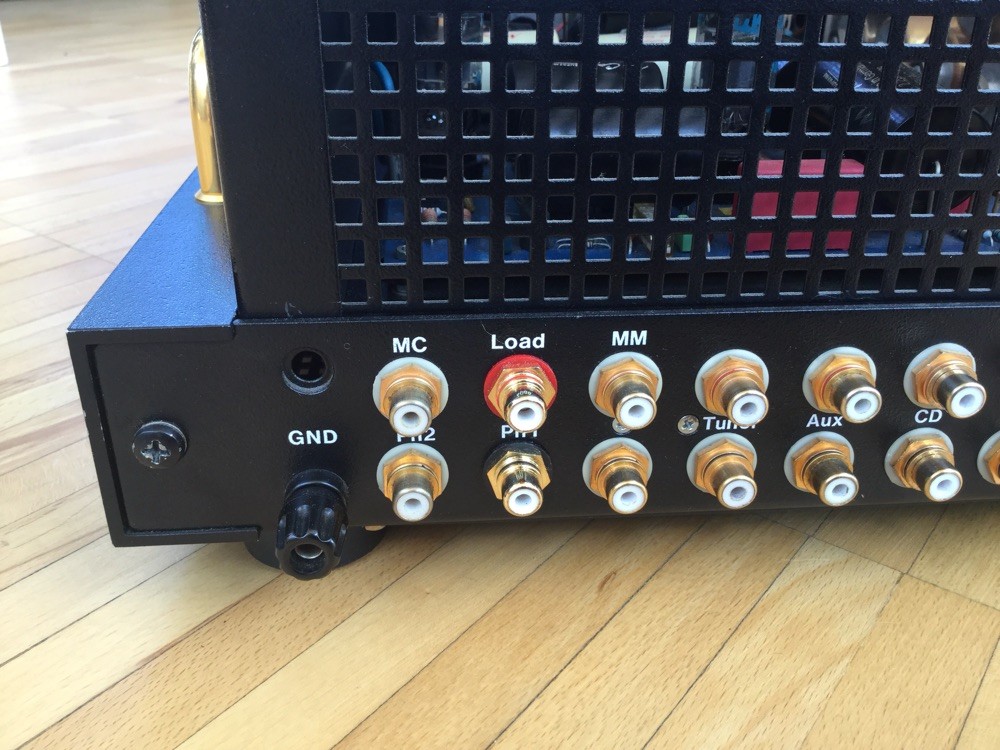

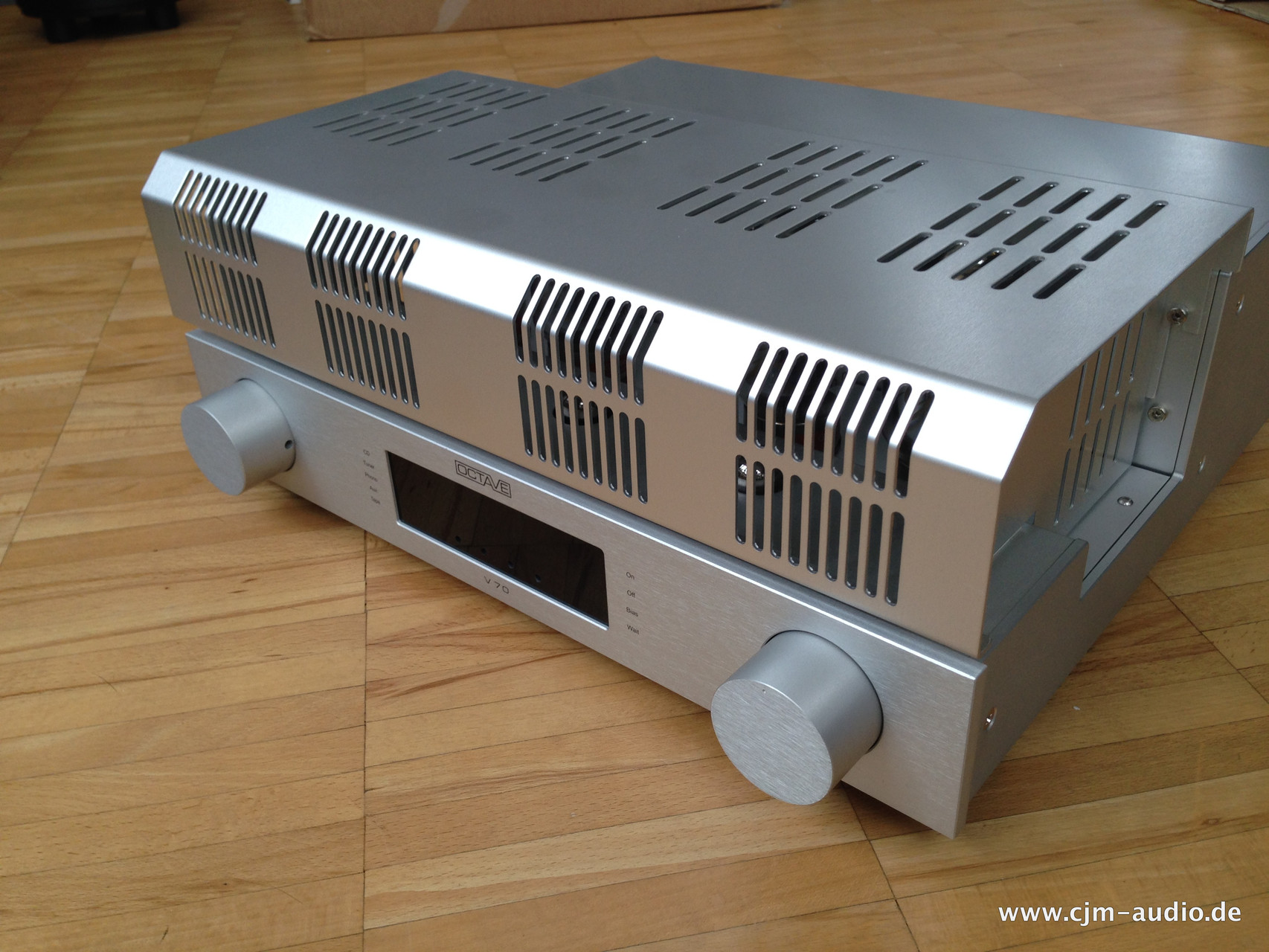

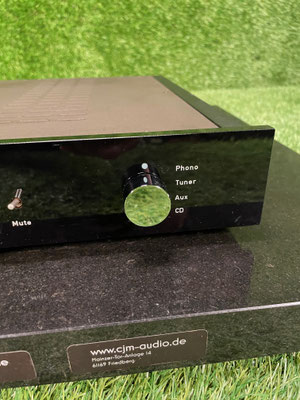

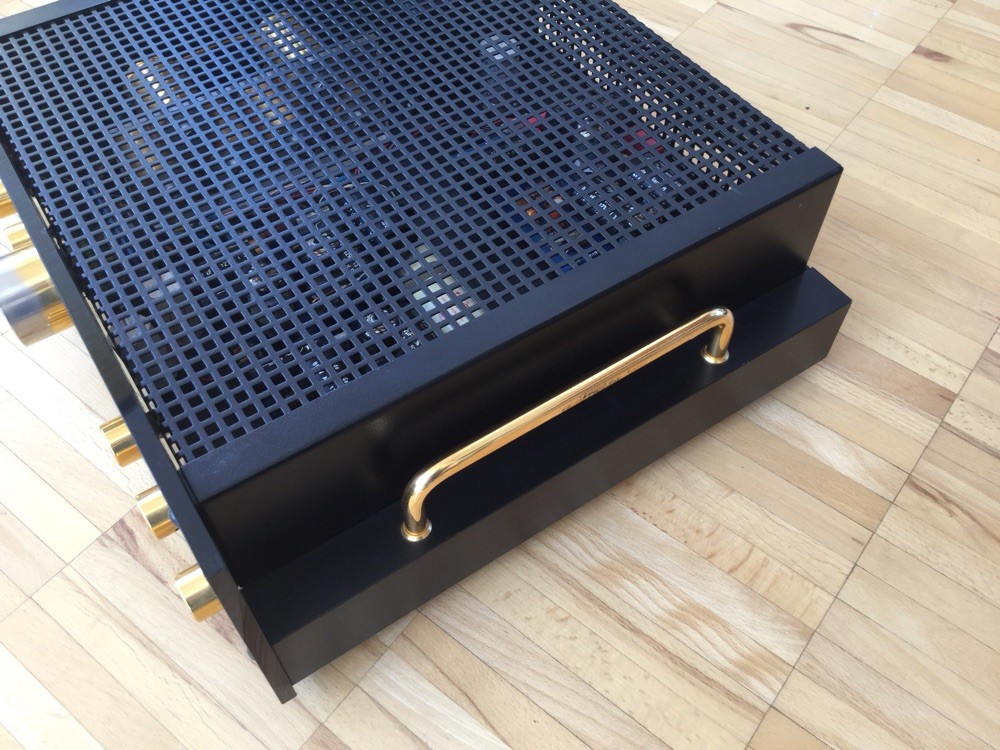

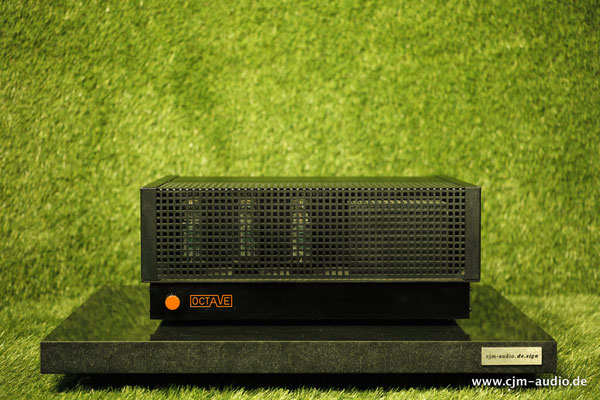

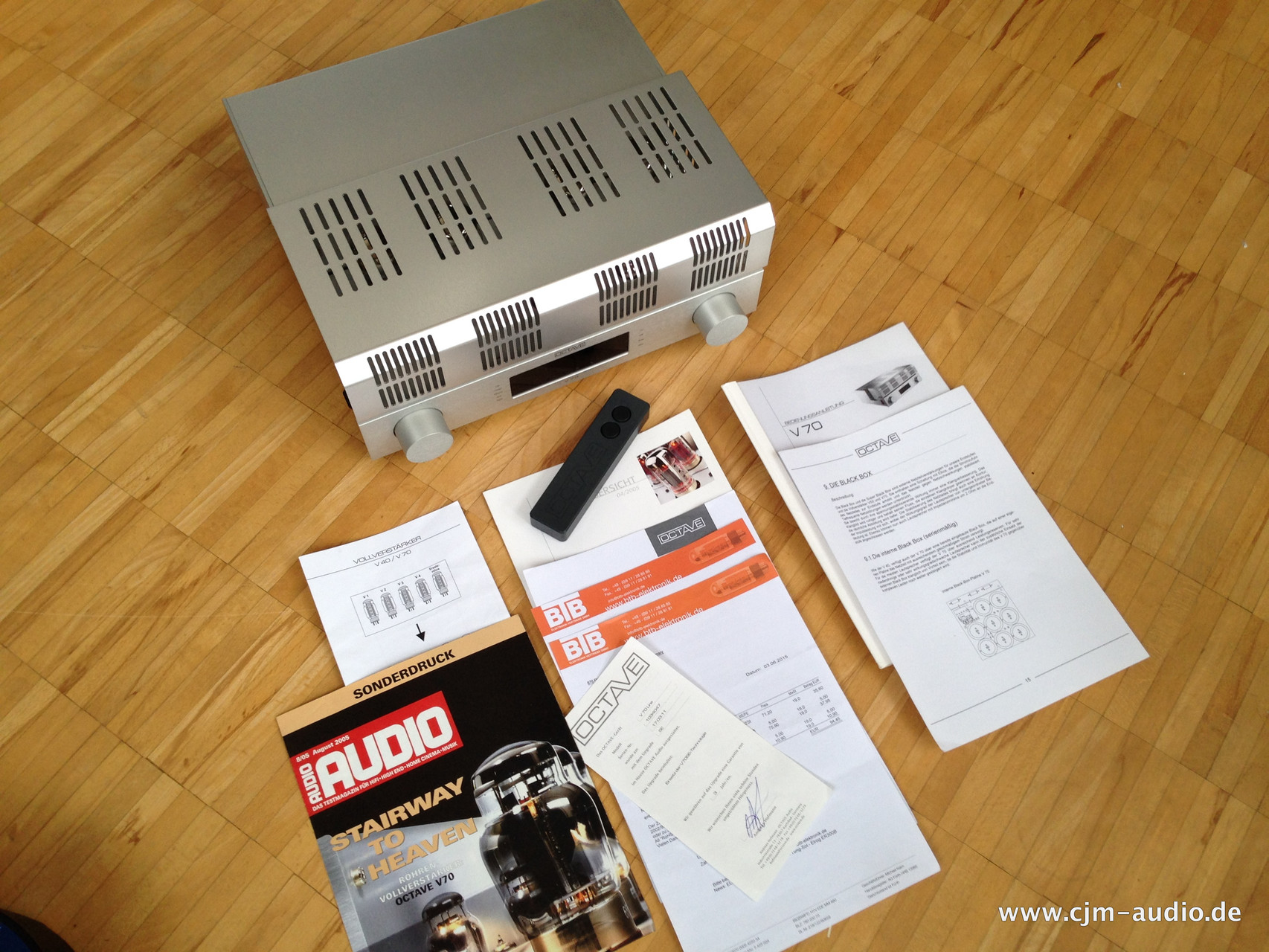

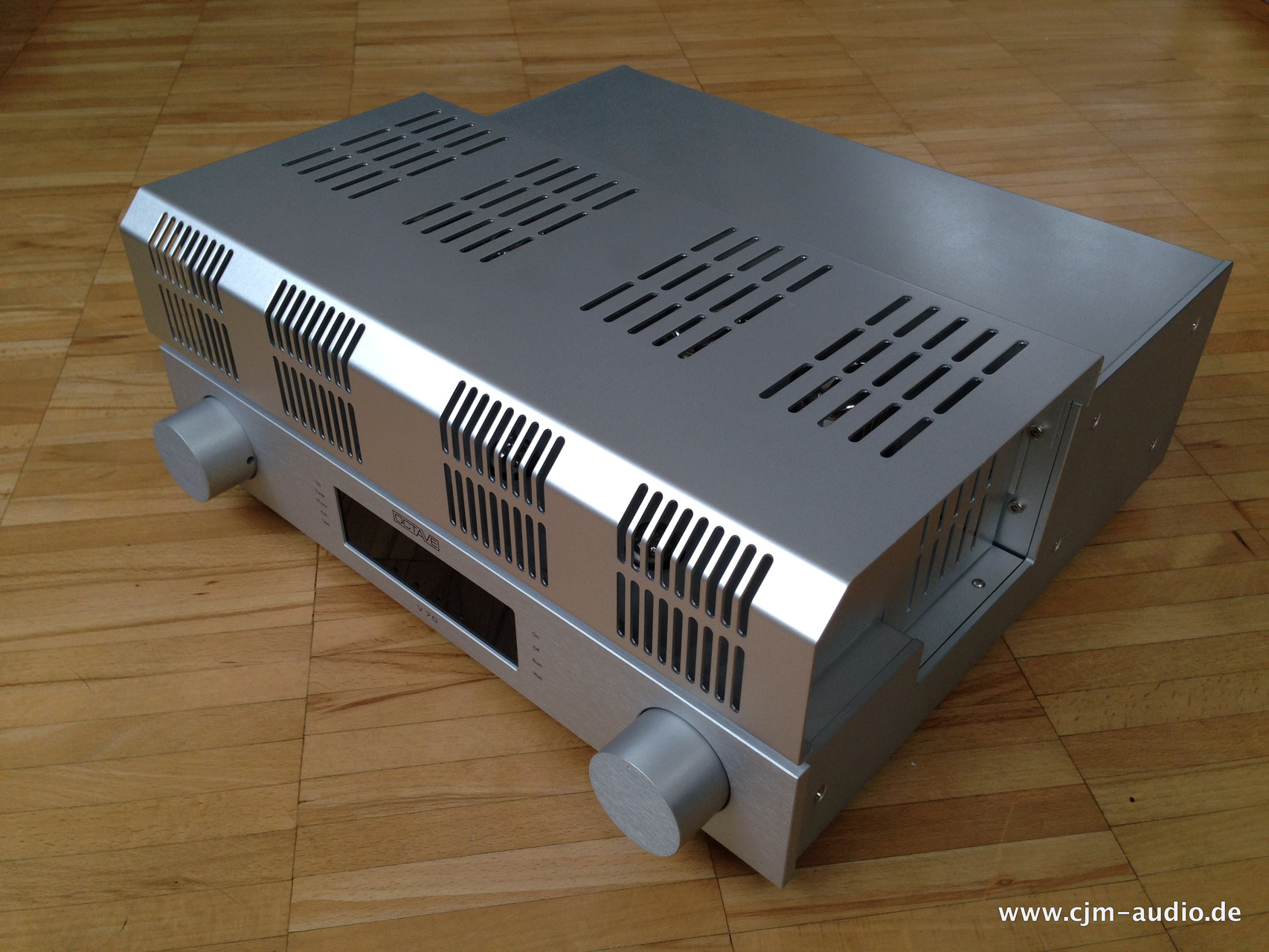

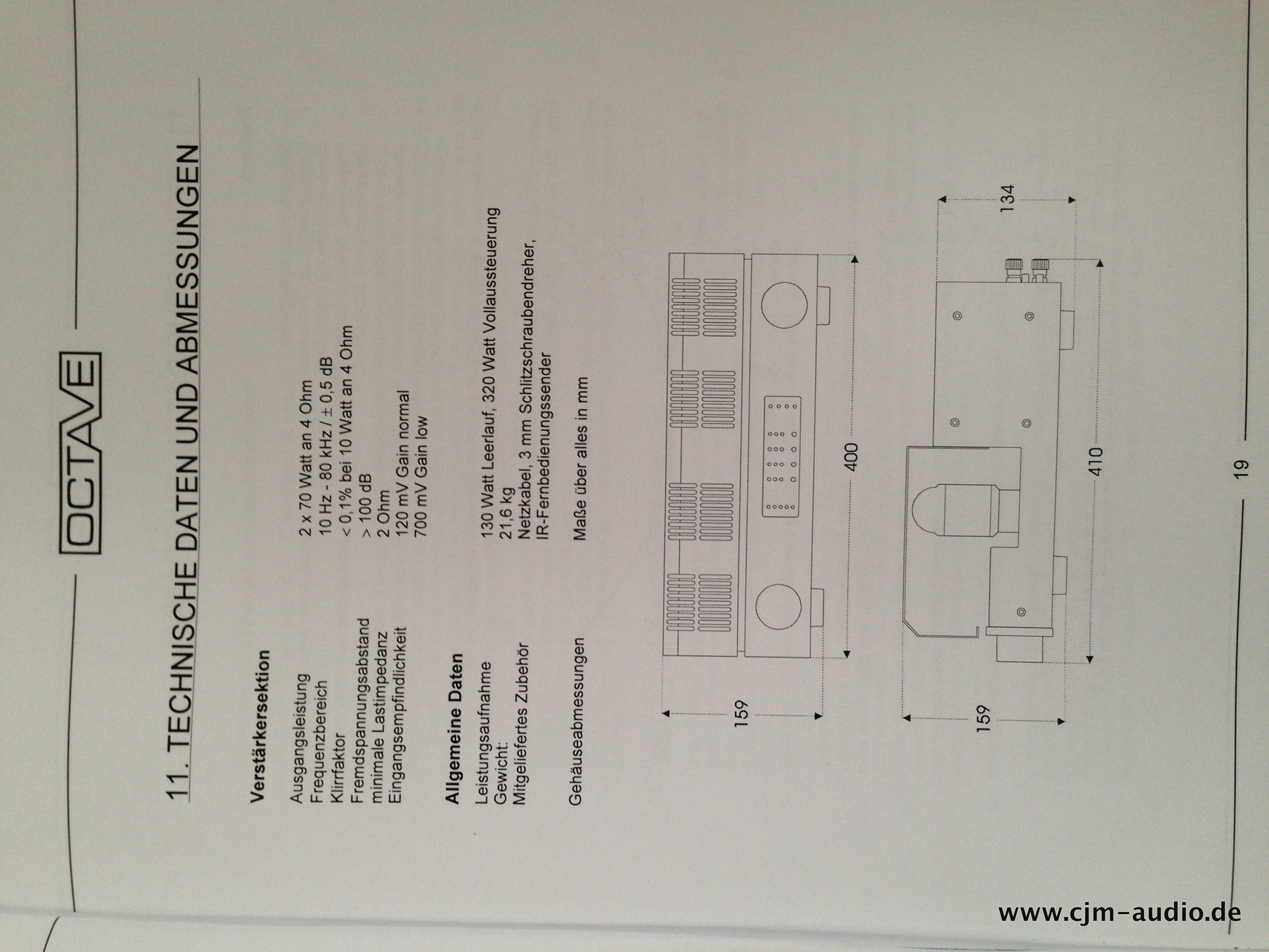

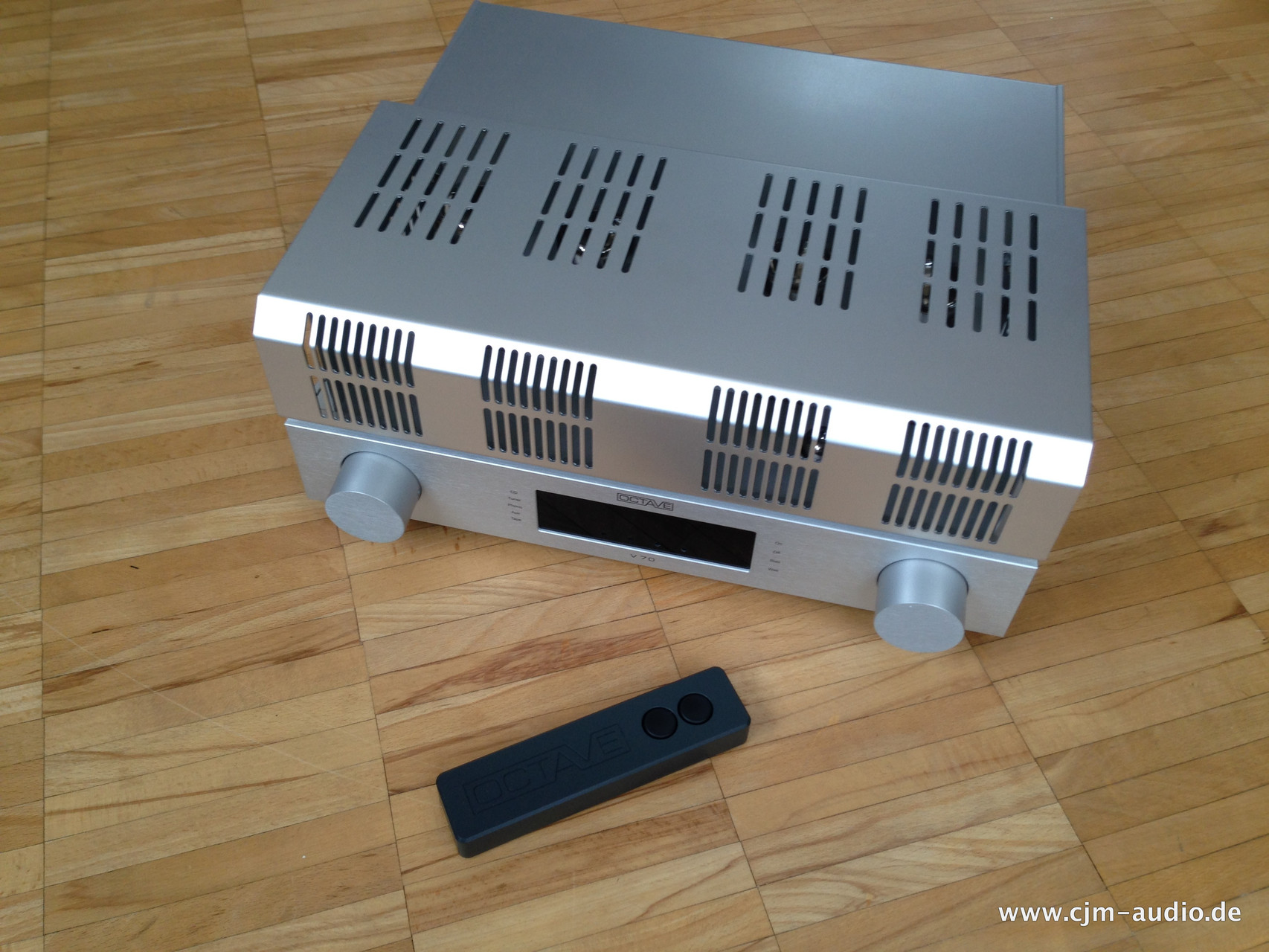

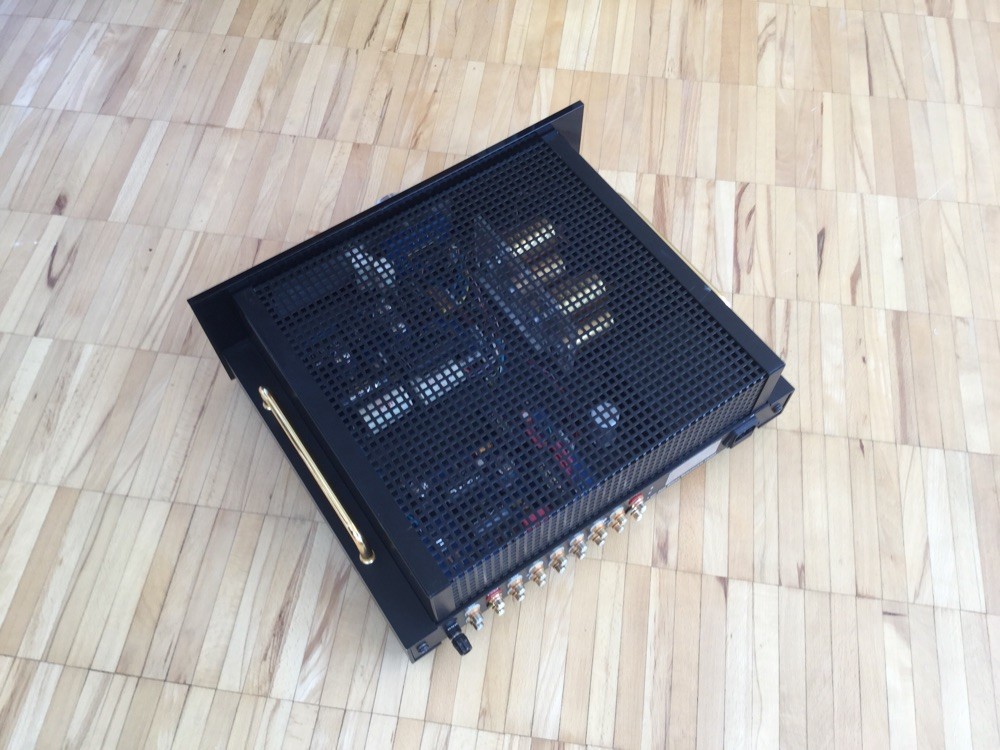

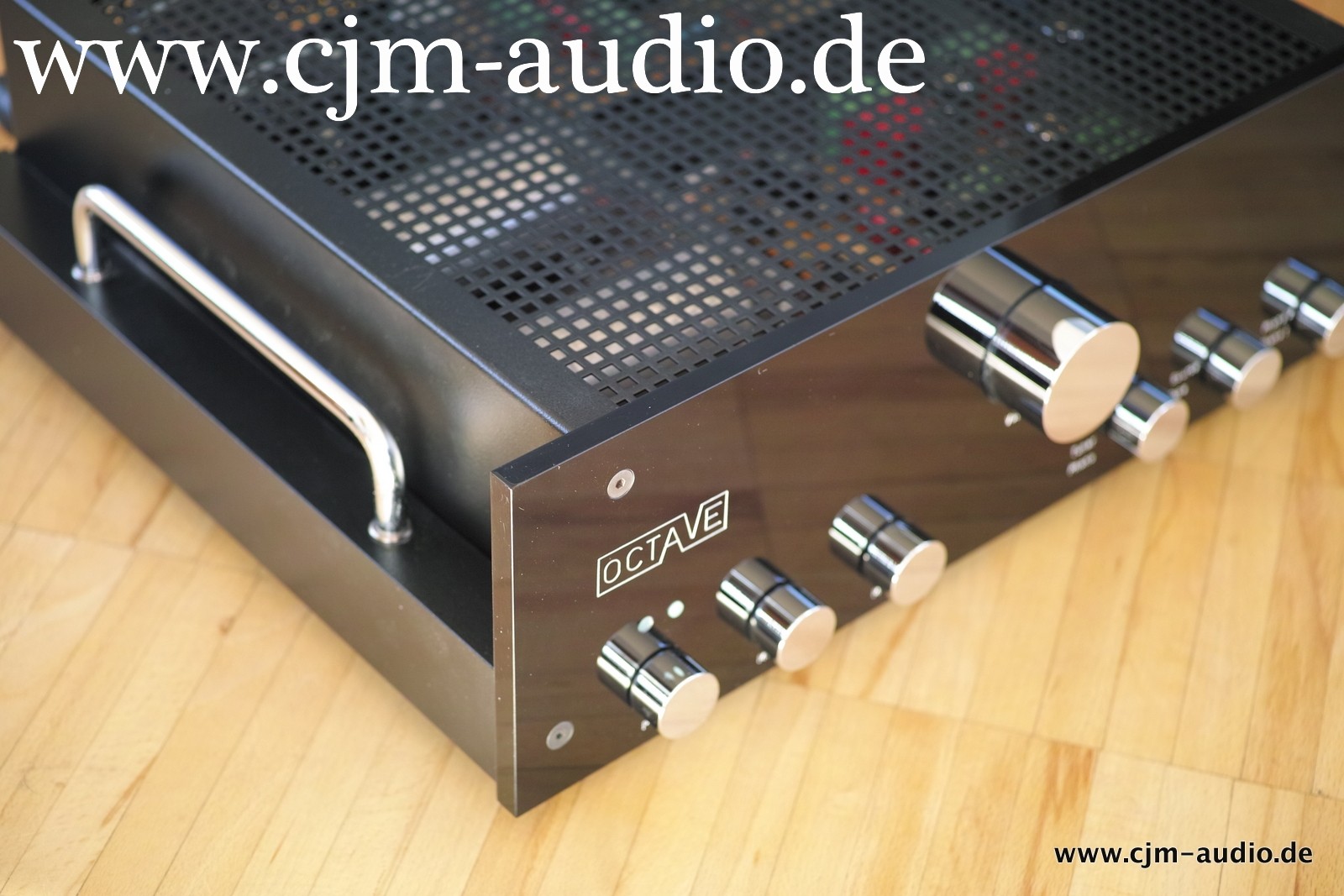

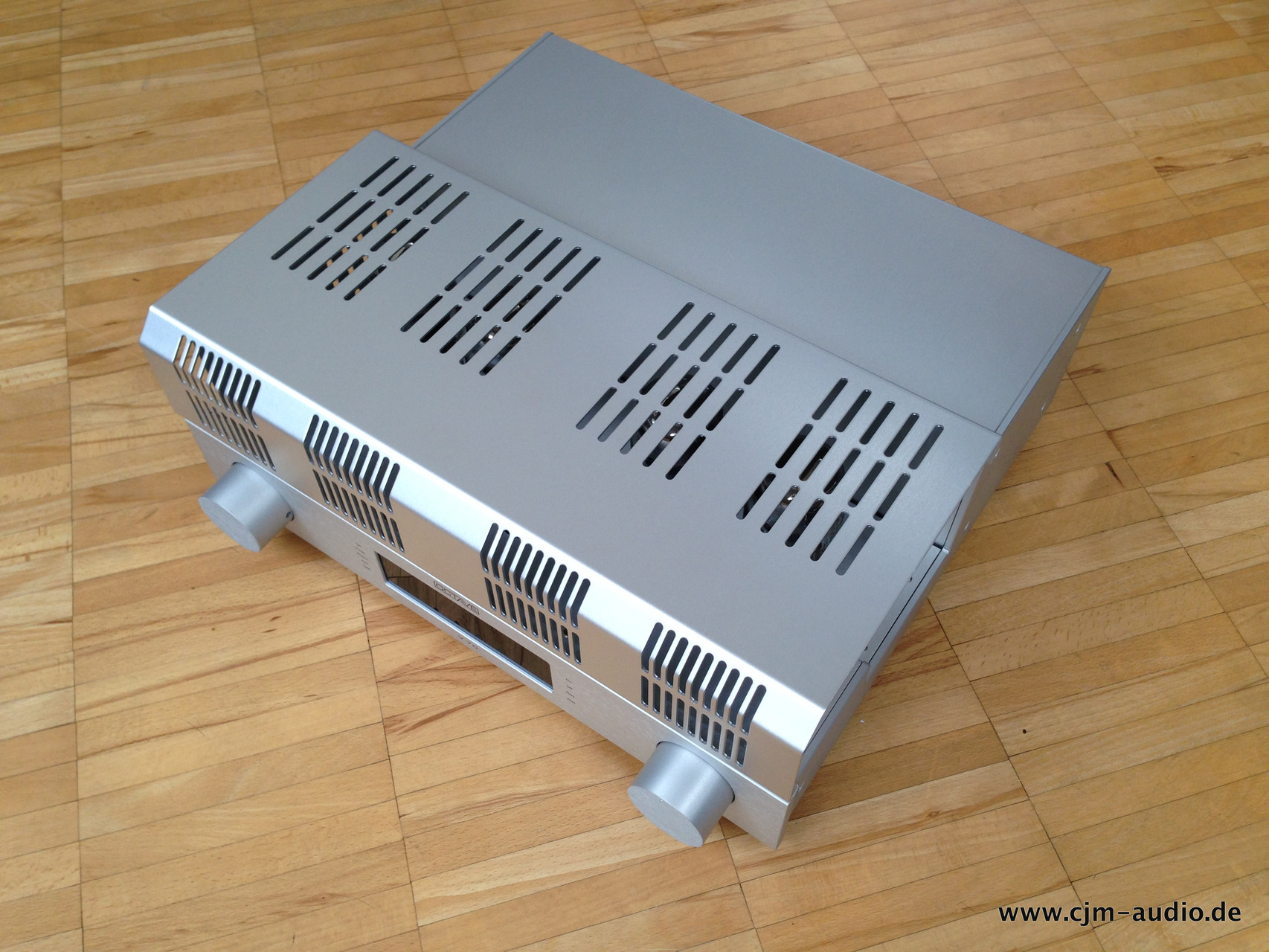

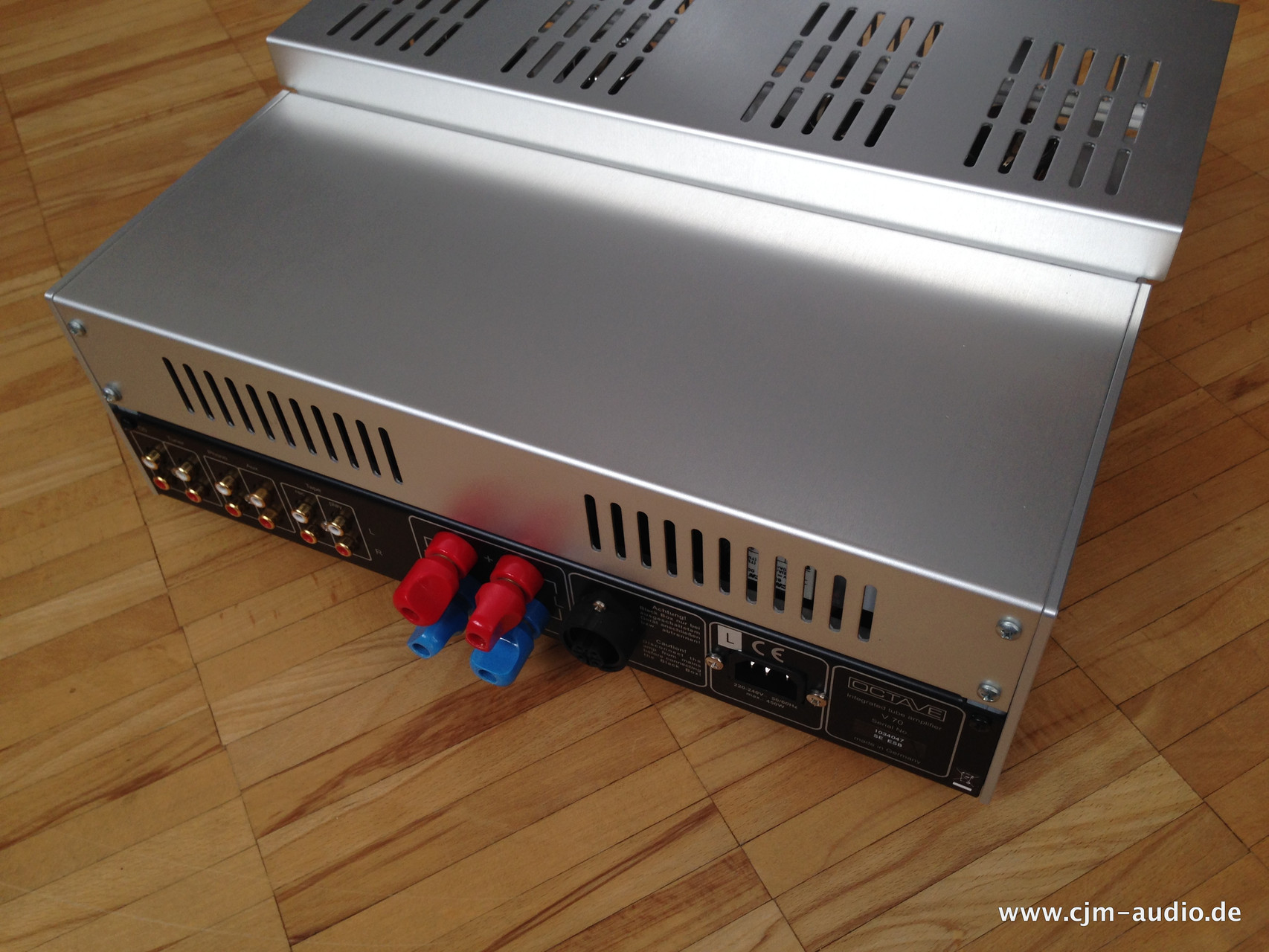

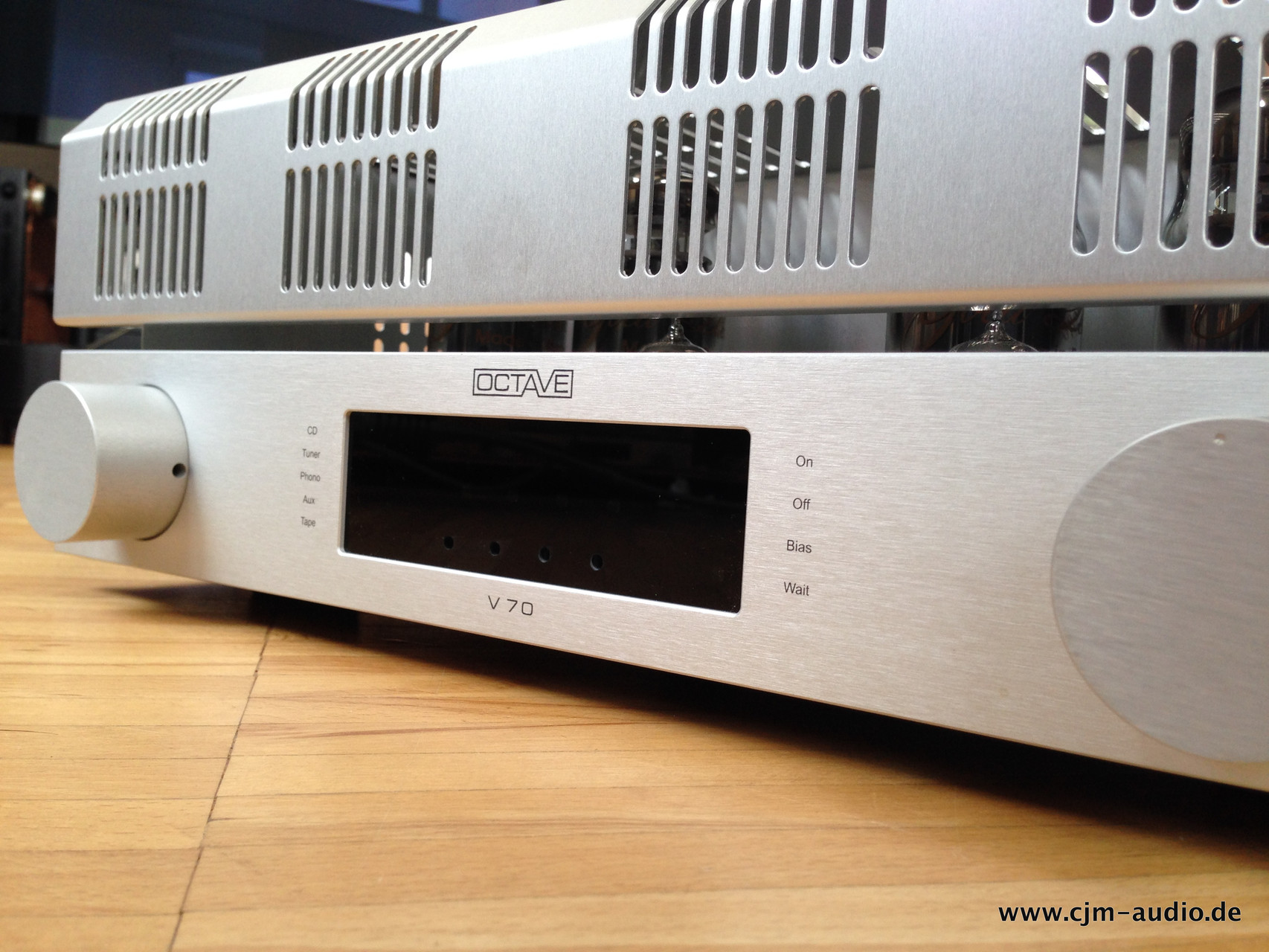

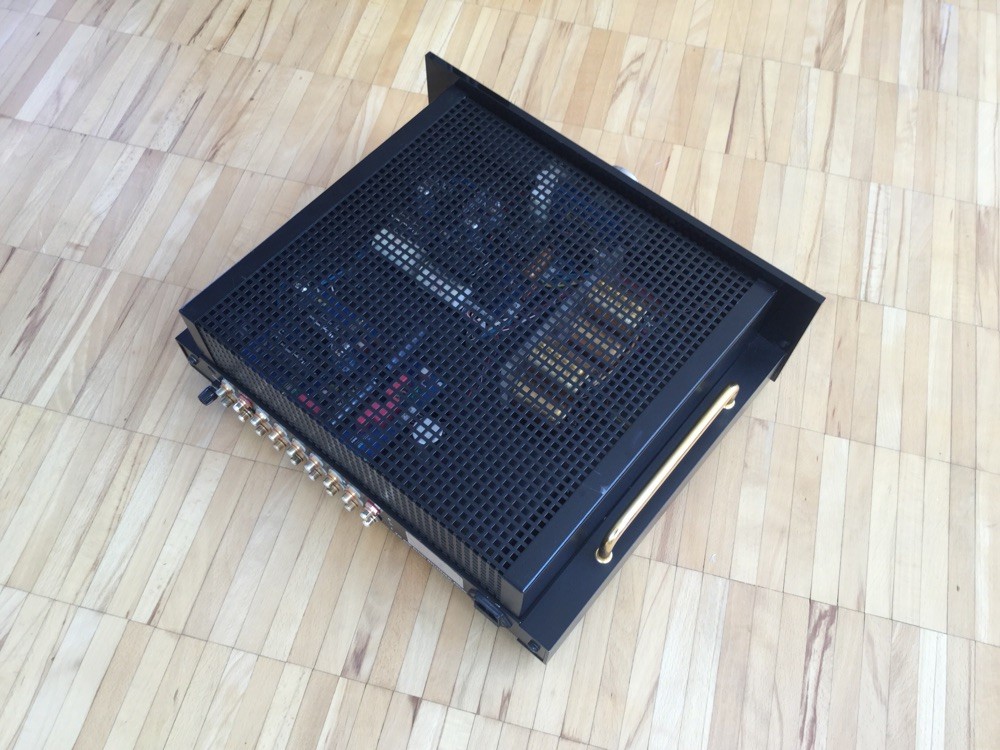

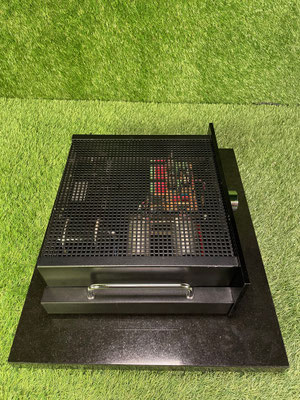

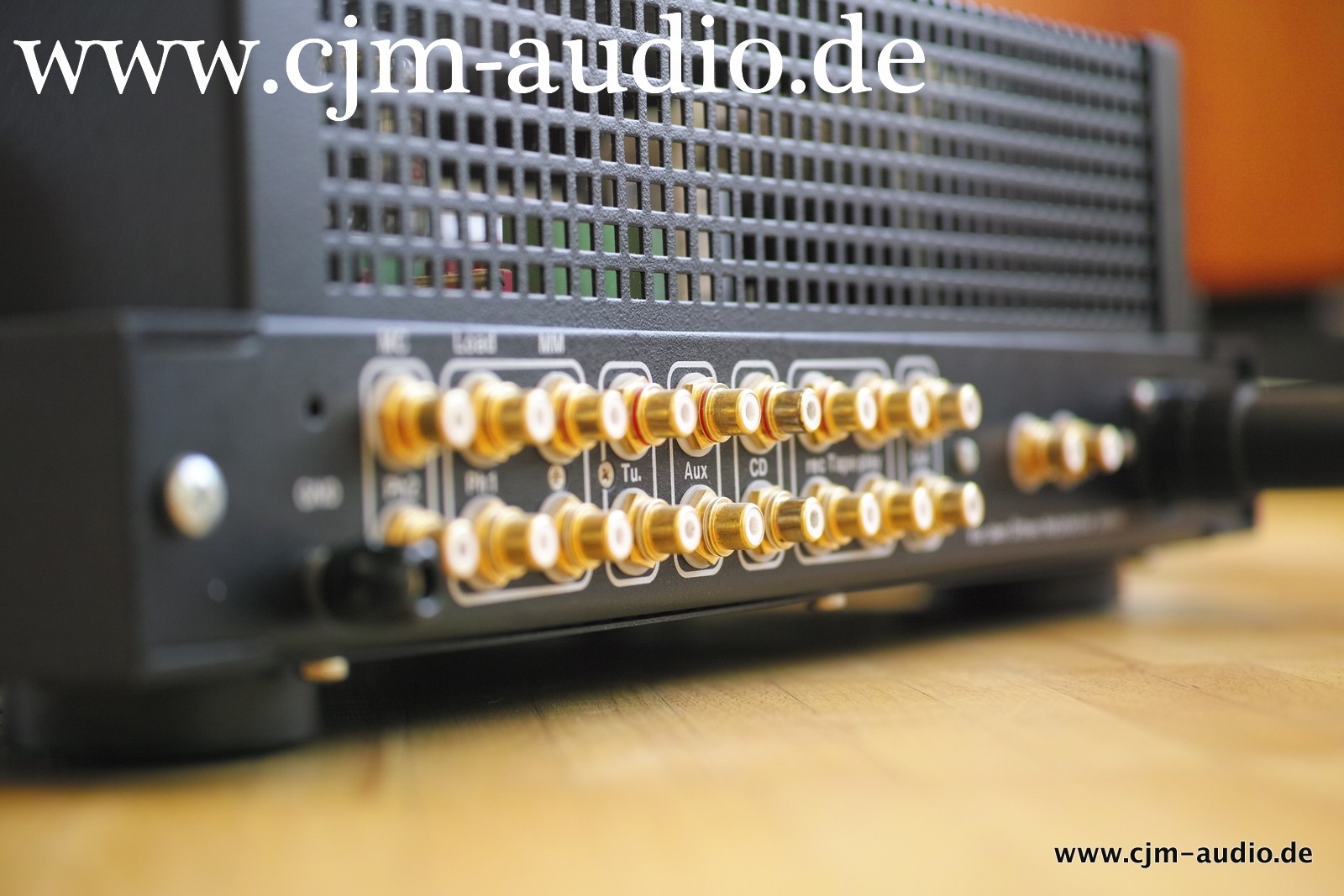

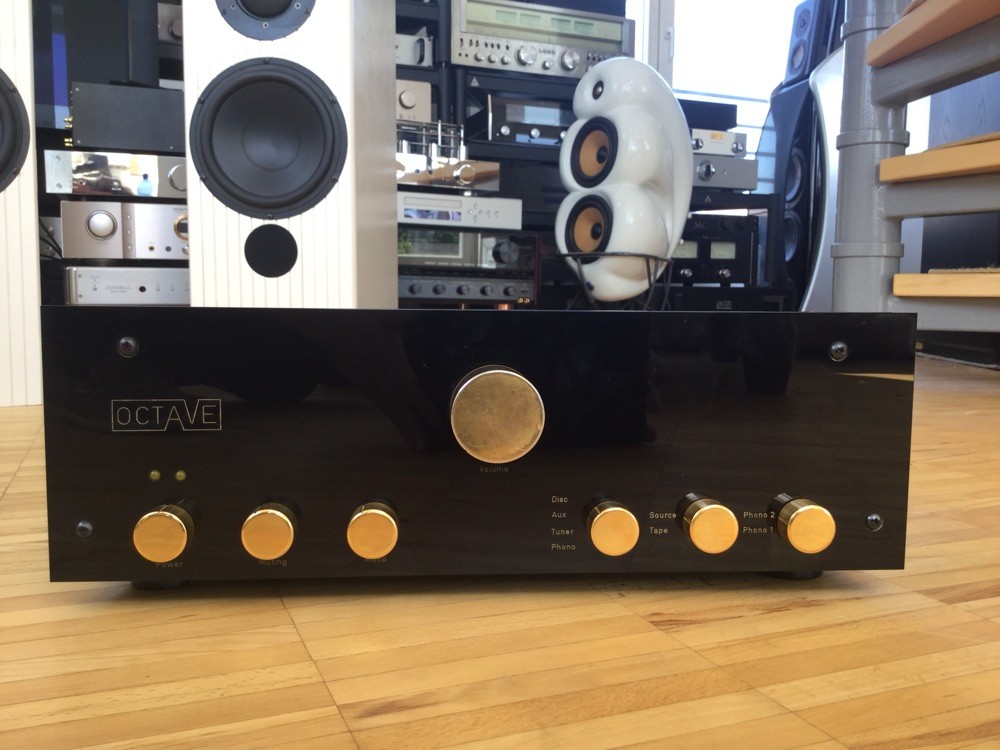

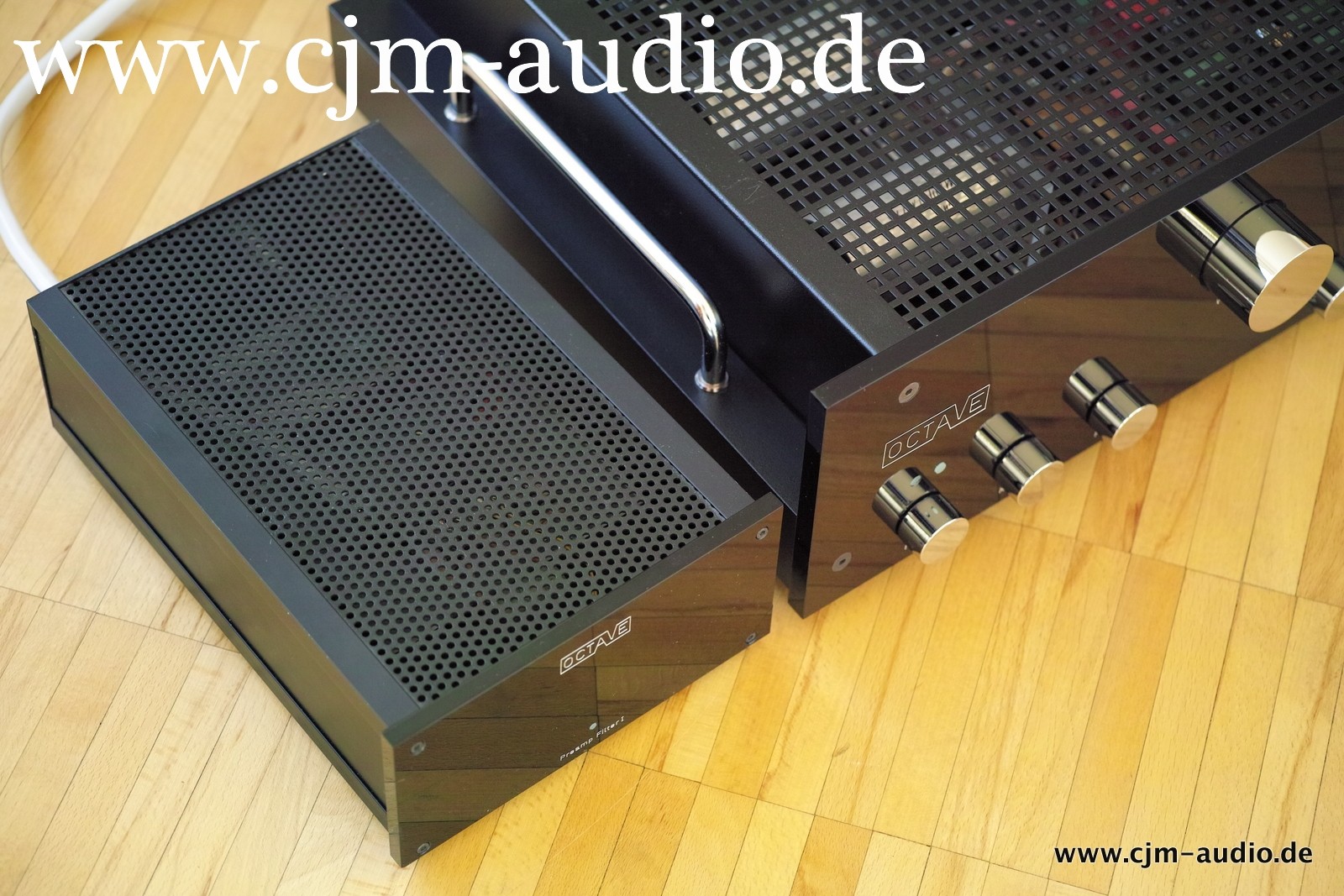

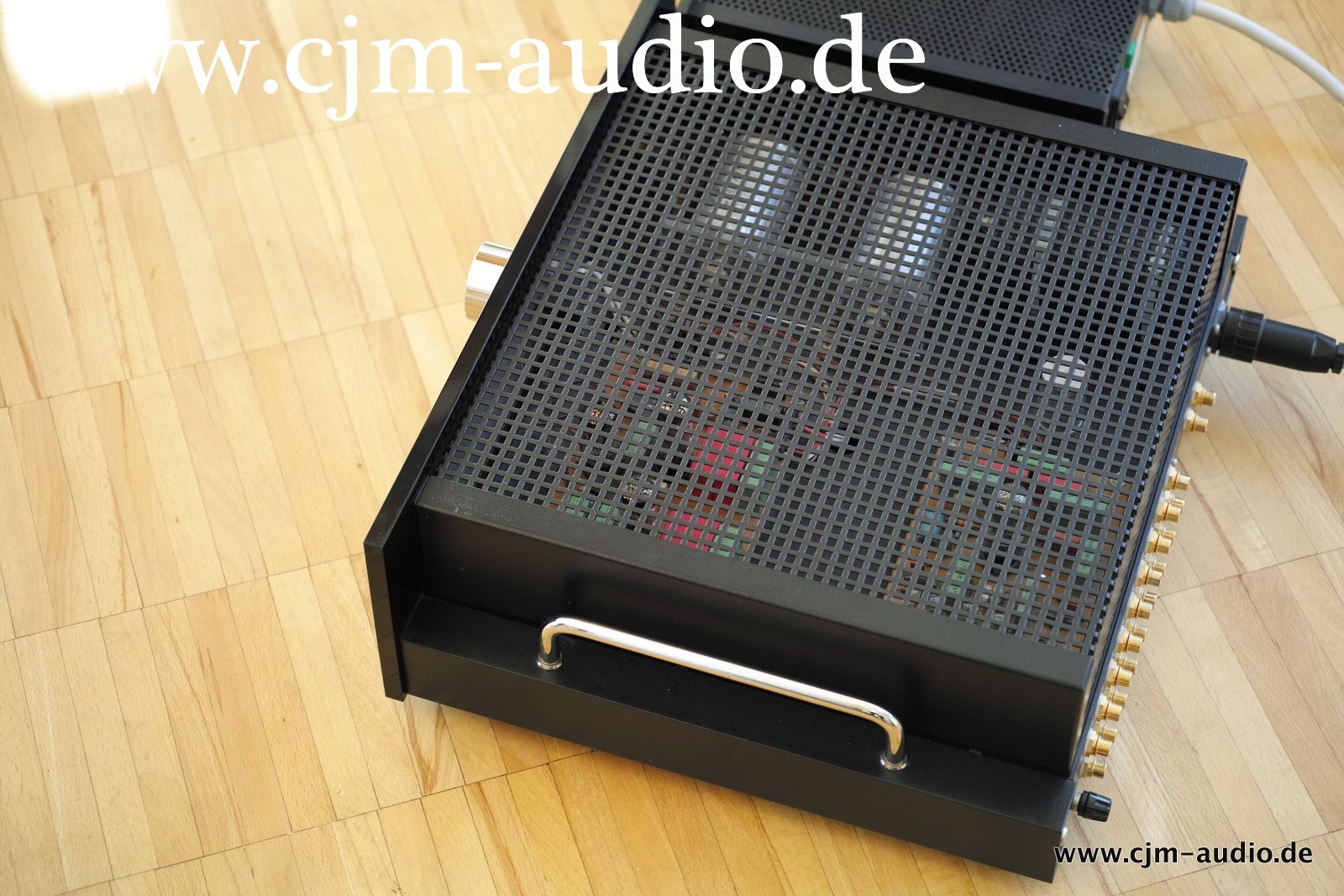

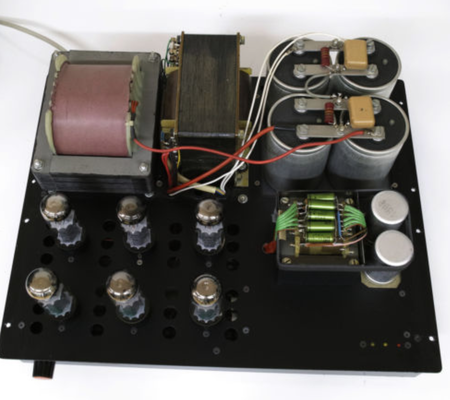

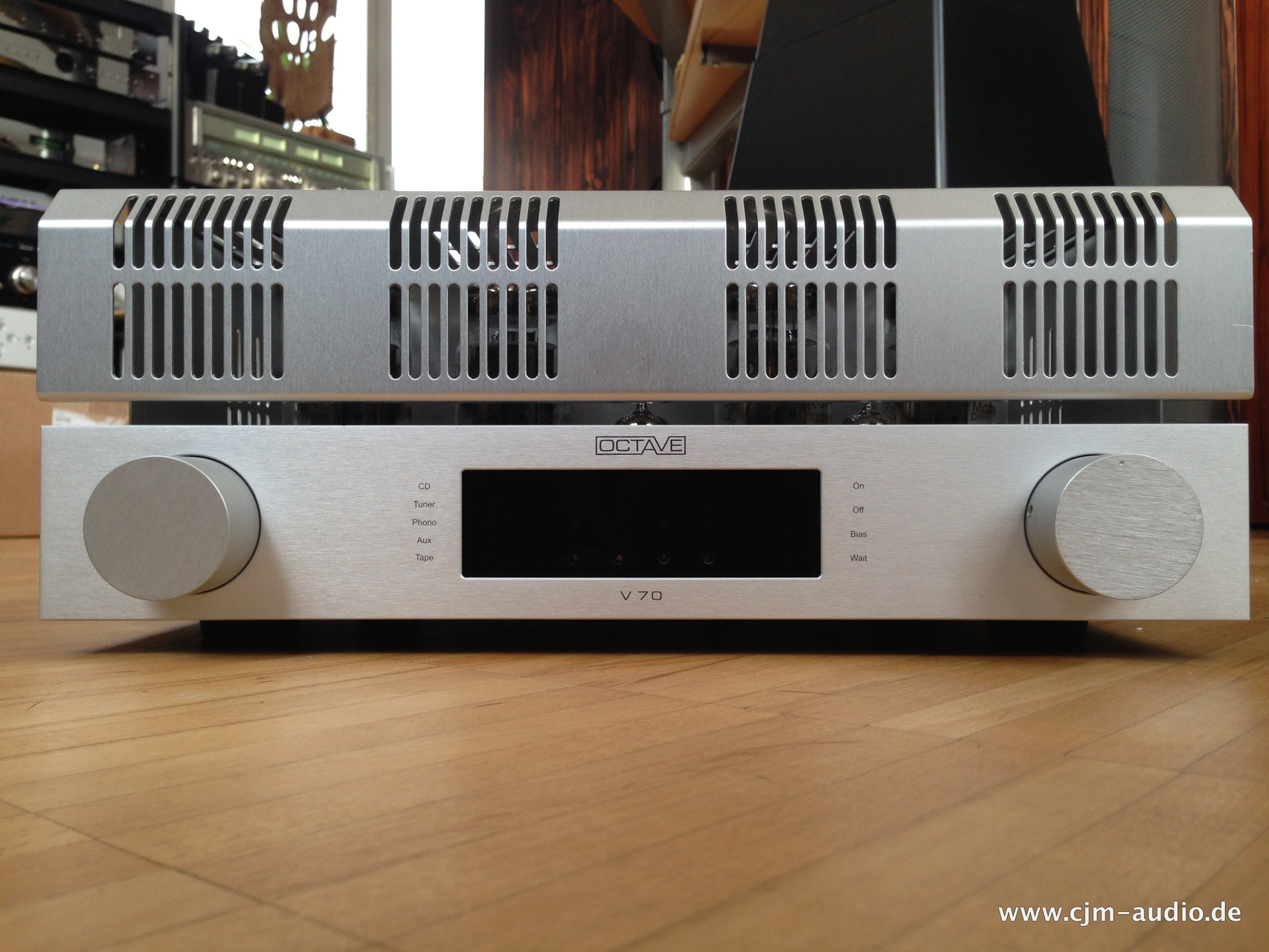

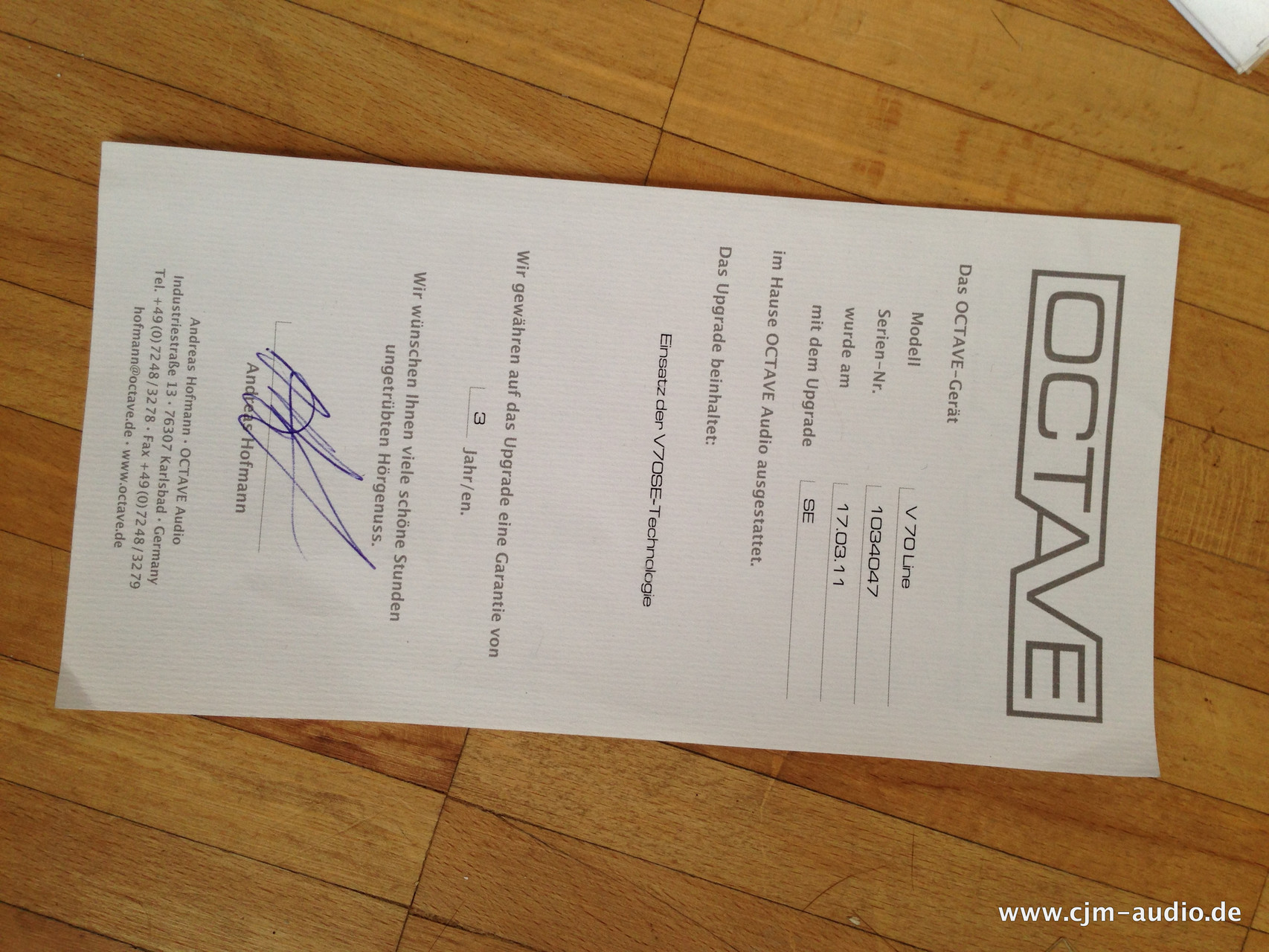

V 70 SE, der Kraftvolle. Zur gleichen Vollverstärkerfamilie gehörend wie der V 40 SE, spielt der V 70 SE mit noch mehr Kraft. Seine hervorragenden Eigenschaften sind Kontrolle und Dynamik. Der V 70 SE kann bei Rockmusik Stürme entfachen und bei klassischer Musik Klangfarbenpracht und Raumverteilung zelebrieren, das Musikhören mit diesem Verstärker macht einfach Spaß. Wie der V 40 SE profitiert auch der V 70 SE von Neuerungen und Weiterentwicklungen gegenüber seinem Vorgänger. Schaltungstechnisch aus dem V 70 weiterentwickelt, aufgebaut im größeren Chassis des Bruders V 80, kann der V 70 SE seine Klangdimensionen ausspielen und gleichzeitig mit hochsensiblen Features wie Phono und XLR aufwarten. Das größere Gehäuse ermöglicht einen perfekten Schaltungsaufbau und die präzise Abschirmung empfindlicher elektronischer Schaltungen. Der V 70 SE ist ein Hochpegel-Vollverstärker mit 2 x 70 Watt Ausgangsleistung. Seine Endstufe basiert auf zwei 6550-Röhren pro Kanal. Dank der BIAS-Einrichtung sind auch sockelgleiche Röhren wie KT88 / EL34 etc einsetzbar Wie alle OCTAVE Verstärker basiert der V 70 SE auf der weiterentwickelten Pentodenschaltung. Diese sichert absolute Stabilität der Endstufe für Lautsprecher ab 84 dB Wirkungsgrad. Auftretende Impedanzschwankungen des Lautsprechers bis 2 Ohm bleiben ohne negativen Einfluss auf den Klang. Durch die weiterentwickelte Netzteiltechnik konnte zudem die Empfindlichkeit gegenüber Netzstörungen reduziert werden. Netzschwankungen verursachen keine klanglichen Einbrüche.
