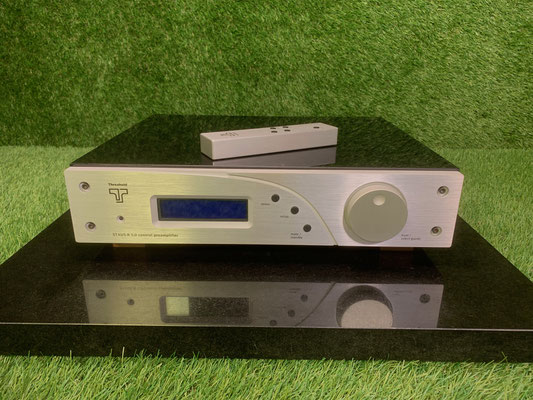

Extrem seltener Threshold Stasis R 5.0 Vorverstärker der letzten Generation!

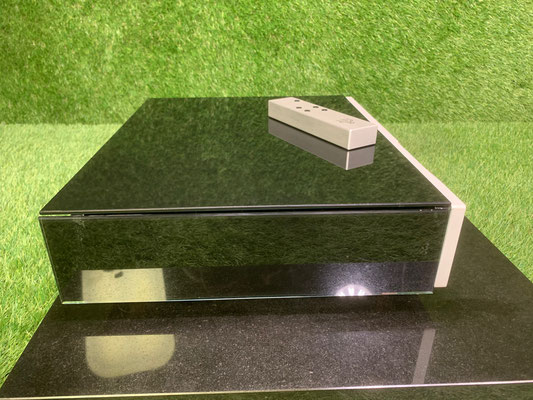

Der Vorbesitzer hat den R-5.0 leider in ein Glasgehäuse verbaut. Dies betrifft nur den Deckel und die Seiten, der Gehäuseboden ist original.

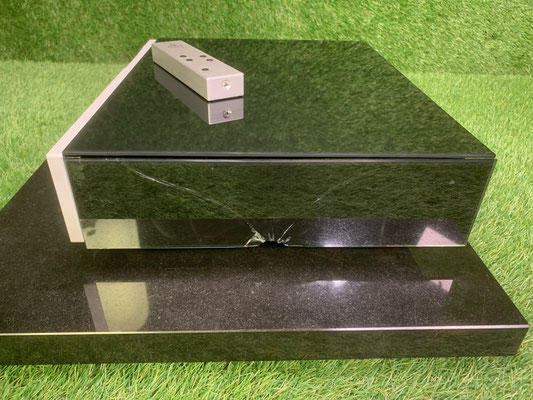

Das Glasgehäuse ist beschädigt!!

Typischer Nelson Pass Sound.

The STASIS-R 5.0 Stereo Control Preamplifier is a classic example of the fine craftsmanship that has been the Threshold hallmark for over 35 years. But it's also Threshold's latest and most eloquent statement-on-the-art of preamplifier design. Striking a delicate balance between art and technology, the 5.0 is a stunning performer both in the lab, where it displays unsurpassed precision, and in the listening room, where it shows off its unparalleled transparency, detail, and depth of image.

The STASIS-R 5.0 is the culmination of Threshold's years of research and development. A truly balanced, fully remote controlled preamplifier, with gain stages based on the highly acclaimed T2, the 5.0 is arguably a benchmark against which other preamplifiers, regardless of price or technology, must now be compared.

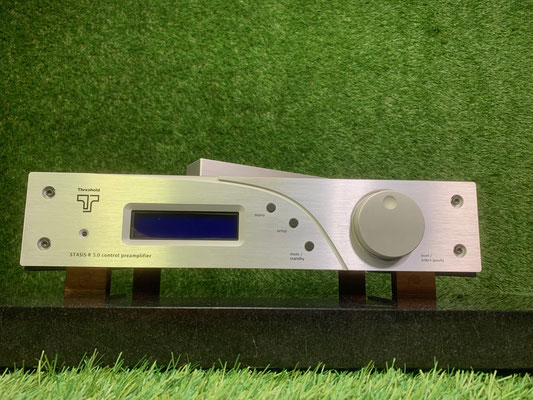

Ergonomically, the STASIS-R 5.0 is a pleasure to use. Volume, balance, source selection, mute and programming can be managed with either the front-panel controls or with the hand-held remote. The selected source and the volume level are displayed on an attractive, easy-to-read LCD blue-white screen that switches to display other functions when needed. The rotary digitally-controlled analog volume control allows levels to be adjusted in 0.1 dB increments for precise, repeatable settings.

The 5.0 is an exceptional product in technical terms, designed as a tool to meet the needs of the most demanding audio professional, but it is also, like the well-regarded historic Threshold preamps, one that possesses the magical ability to stir the heart of even the most jaded audiophile.

STASIS-R 5.0 Features

Fully balanced from input to output providing extremely high common-mode rejection and cancellation of most distortion artifacts

Fully complementary circuitry

Low-noise direct-coupled fully discrete solid state design

Short direct signal paths

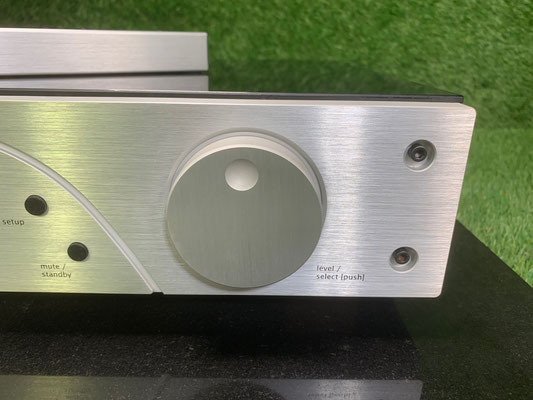

Rotary volume control, 80 dB range in 0.1 dB increments

Easy-to-read LCD matrix display (blue/white, 2-line, 16 character)

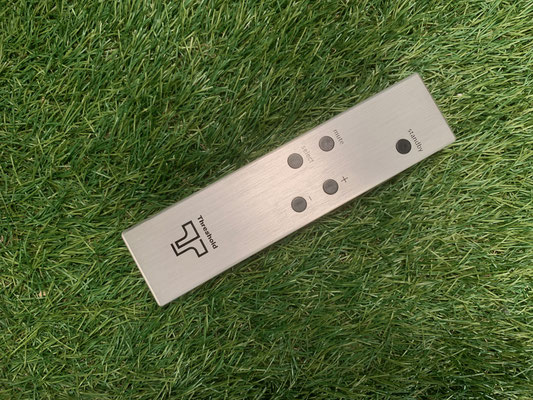

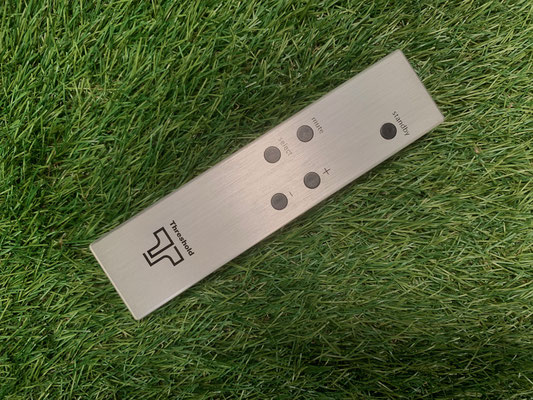

Custom machined aluminum infrared remote control

Separate power supply sections for left and right channels

Separate independent power supply for digital control circuitry

Oversize toroidal power transformer

Trigger output (12v) for on/off control of ancillary equipment (e.g. power amplifier, active subwoofer, etc.)

Output impedance of less than 100 Ohms

RS-232C port for software updates and future features

Two Threshold Data Link (T-LINK) ports for control and communication with other Threshold equipment

Premium components such as military-grade precision resistors, computer-grade capacitors, military-grade glass-epoxy circuit boards

Traditional Threshold rugged chassis construction

High reliability

Unsurpassed precision and sonic excellence

Inputs: 2 balanced (XLR) and 4 unbalanced (RCA) stereo pairs

Line outputs: balanced (XLR) and unbalanced (RCA) stereo pairs

Record outputs: unbalanced (RCA) stereo pair

Rack-mountable design (optional rack-mount accessories required)

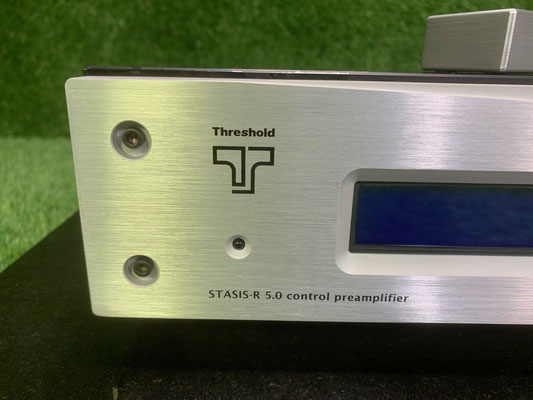

Attractive polished silver-anodized aluminum front panel

Handcrafted in the USA

5.0 Specifications

Frequency Response: DC-100kHz; +/- 0.5dB 20Hz-20kHz

Distortion: 0.02% at 1kHz

Gain: 12 dB

Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz bandwidth)

Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced

Input Sensitivity: 1.12V RMS

Output Impedance: less than 100 Ohms

Output level: maximum 16Vrms balanced, 8Vrms unbalanced

Trigger output: 12V for on/off control of ancilary equipment

Dimensions & Weight

17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet)

43.5 cm W x 34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet)

Shipping weight: 20 lbs., 9 kg

Net weight: 14 lbs., 7 kg
